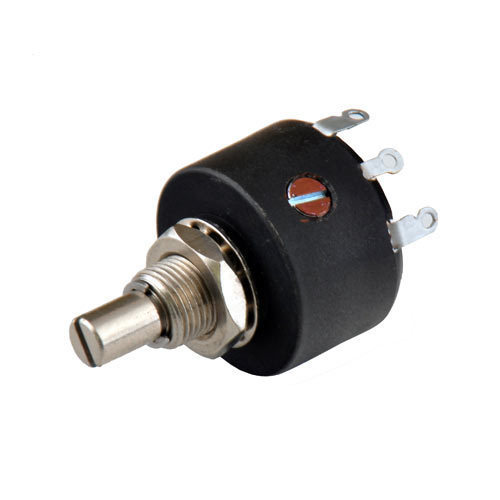

Panel Setting Potentiometers

Panel Setting Potentiometers
Panel Setting Potentiometers
Send Inquiry
Product Code : 129255
Brand Name : Uni Automation
Product Description

Equivalent to Baumer


  1. Excellent Linearity.
  2. Element Winding is done using an international make high precision machine.
  3. IP Protection available.
  4. Continuous rotation available.
  5. Signal transfer by multiple contacts for better reliability & low noise.
  6. Better capacity to withstand soldering/thermal stress.
  7. Engineering Plastic housing which is highly recommended for majority applications.
  8. ROHS compliance.


  1. Power Supplies.
  2. Welding Equipment.
  3. Electric Actuators.
  4. Medical Instruments.
  5. Test & Measurement Instruments.
  6. Electro-mechanical Relays.
  7. Electric Power Products.
  8. DSO.
Specification P25
Technology Conductive Plastic
Body Diameter ( Mm) 13
Shaft diameter (Mm) 3.0/3.17
Std. Resistance 500-10k
Power dissipation 0.5W
Independent Linearity ±5%
St. Elect/mech angle with stop 300/320
rotational life( Typical in millions) ±0.5
Description Special elect. high torque, o ring, continuous rotation, special shaft, PCB termination, special linearity up to ±3%
