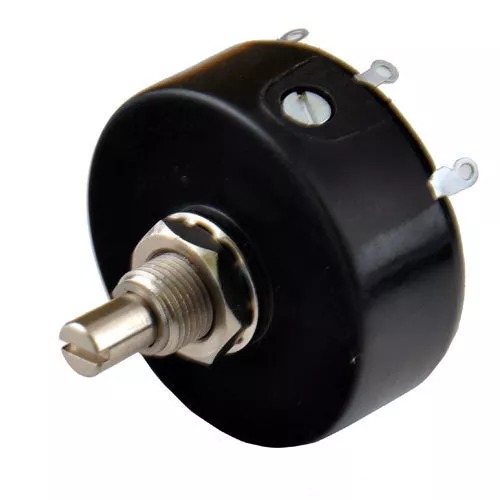

Panel Setting Potentiometers

Panel Setting Potentiometers
Panel Setting Potentiometers
Send Inquiry
Product Code : 129256
Brand Name : Uni Automation
Product Description

Equivalent to Baurmer

Advantages

  1. Excellent Linearity.
  2. Element Winding is done using an international make high precision machine.
  3. IP Protection available.
  4. Continuous rotation available.
  5. Signal transfer by multiple contacts for better reliability & low noise.
  6. Better capacity to withstand soldering/thermal stress.
  7. Engineering Plastic housing which is highly recommended for majority applications.
  8. ROHS compliance.

Applications

  1. Power Supplies.
  2. Welding Equipment.
  3. Electric Actuators.
  4. Medical Instruments.
  5. Test & Measurement Instruments.
  6. Electro-mechanical Relays.
  7. Electric Power Products.
  8. DSO.
Specification P40
Technology Wire Wound
Body Diameter ( Mm) 40
Shaft diameter (Mm) 6/6.35
Std. Resistance 100-10k
Power dissipation 3W
Independent Linearity ±0.75%
St. Elect/mech angle with stop 270/285
rotational life( Typical in millions) 0.1
Description High torque, continuous rotation, special shaft, high resistance value, special linearity up to ±0.5%, IP 65 protection
