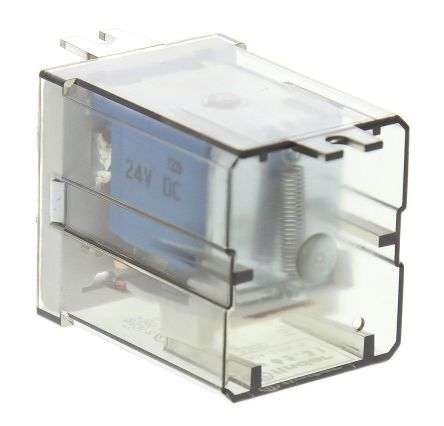

Power relay

Power relay
Power relay
Send Inquiry
Product Code : 65.31.9.024.0300
Brand Name : Finder
Product Description
Attribute Value
Coil Voltage 24 V dc
Contact Configuration SPNO
Mounting Type Flange Mount
Switching Current 30 A
Terminal Type Quick Connect
Coil Resistance 445 Ω
Series 65 Series
Maximum Switching Voltage AC 250V ac
Application Power
Length 62.2mm
Depth 32.2mm
Height 36.5mm
Dimensions 32.2 x 36.5 x 51.5mm
Maximum Operating Temperature +75°C
Isolation Coil To Contact 4kV
Minimum Operating Temperature -40°C
Coil Power 1.3W
Operating Temperature Range -40 → +75°C
Number of Poles 1
Maximum Switching Power AC 7.5 kVA
Contact Material Silver Alloy
