Product Code : 1800-1805
Brand Name : Honeywell
Product Description

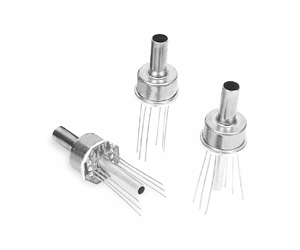

Pressure sensor 1800-1805 SERIES

The 1800/1805 Series sensors are high performance TO-8 pressure transducers specifically designed to address a variety of both low and medium pressure original equipment manufacture applications. The transducers offer two performance grades and a variety of compensation options, including span and calibration to within ±2 mV (normalized output). The 1800/1805 Series can operate with either constant current or voltage excitation. The 1800/1805 Series contains a solid state piezoresistive pressure sensor mounted in a standard TO-8 package. They are printed circuit board and pin-for-pin compatible with other

TO-8 pressure sensors.

FEATURES

  •  Standard pressure ranges from 0 psi to 3 psi, 0 psi to 150 psi
  •  Gauge, absolute or differential models
  •  Voltage or constant current excitation
  •  Choice of temperature compensation options
  1. Laser trim, normalized output
  2.  Laser trim, standard output
  3.  Resistor compensation
  •  Uncompensated version available for microprocessor based designs

POTENTIAL APPLICATIONS

  • Instrumentation calibration
  • Avionics/aerospace
  • Medical equipment
  •  VAC
  • Pneumatic controls
